Three different types of actuating linkage systems are available for parking brakes:

• Rod Linkage.

• Hand or Foot Lever.

• Cable Linkage.

For detail information concerning these linkage systems, special designs are available upon request.

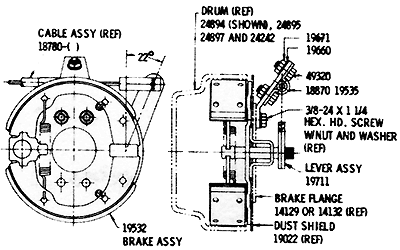

7 x 1-3/4 BRAKE   Part #'s  519538
( R.H.) & ( L.H.)



• Includes mounting hardware.

•Used on front or rear wheels.

•Actuated by 518847 lever and 8194 cable
linkage or by drawbar.

• Weight each 5 lbs.

9X2 PARKING/SERVICE BRAKES
Part #519557 ( R.H.) & 519556 ( L.H.)



12 X 2 HYDRAULIC BRAKE  Part #'s 518169 (R.H.) 518168 (L.H.)



• Includes mounting hardware.

• Nominal Stopping Capacity: 5,000 lbs. per axle with 15" tires.

• Not to be used with surge actuator.

• See hydraulic line and fitting kits.

• Wheel cylinder diameter of 1-1/8."

• Weight each 14.5 lbs.
• Actuate with 518680 air over hydraulic kit or 518668 vacuum over hydraulic kit.

12 X 3 HYDRAULIC BRAKE
 W/O Parking Brake Part #'s 518176 (R.H.) 518177 (L.H.)
With Parking Brake Part #'s 518178 (R.H.) 518179 (L.H.)

• Includes mounting hardware.

• Nominal stopping capacity: 7,500 lbs. with 15" tires.

• Use with vacuum over hydraulic actuation.

• With or without parking brake lever.

• Weight each 32 lbs.
