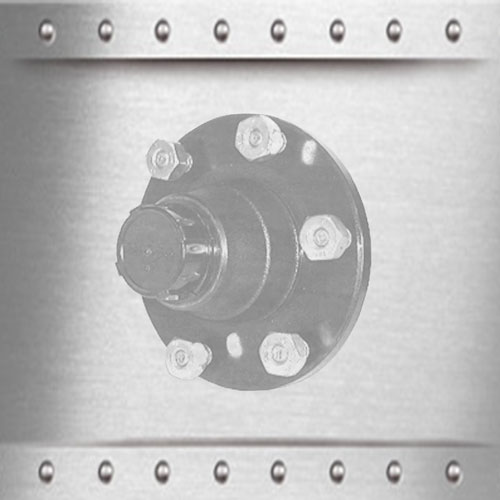

4 CONE BOLTS ON 4" BOLT CIRCLE
5 CONE BOLTS ON 4-1/2" BOLT CIRCLE
• WEIGHT OF COMPLETE HUB: 4 LBS
• BRAKES AVAILABLE: 7 x 1-3/4 PARKING
• CAPACITY PER AXLE: 1,800 HIGHWAY SERVICE
• REFER TO TECHNICAL INFORMATION FOR LOW SPEED SERVICE
HUB, DRUM, BRAKE AND WHEEL COMBINATIONS
|
Bolt Circle |
Brake Used |
Wheel |
Wheel Size |
Wheel Type |
Brake Drum Demountable |
Hub Replacement |
Hub Complete |
|
4 on 4 |
7x1-3/4 |
535150 |
8x3-3/4 |
D.C. |
524894 |
533001 |
533003 |
|
5 on 4-1/2 |
parking |
535152 |
12x4 |
D.C. |
522889 |
