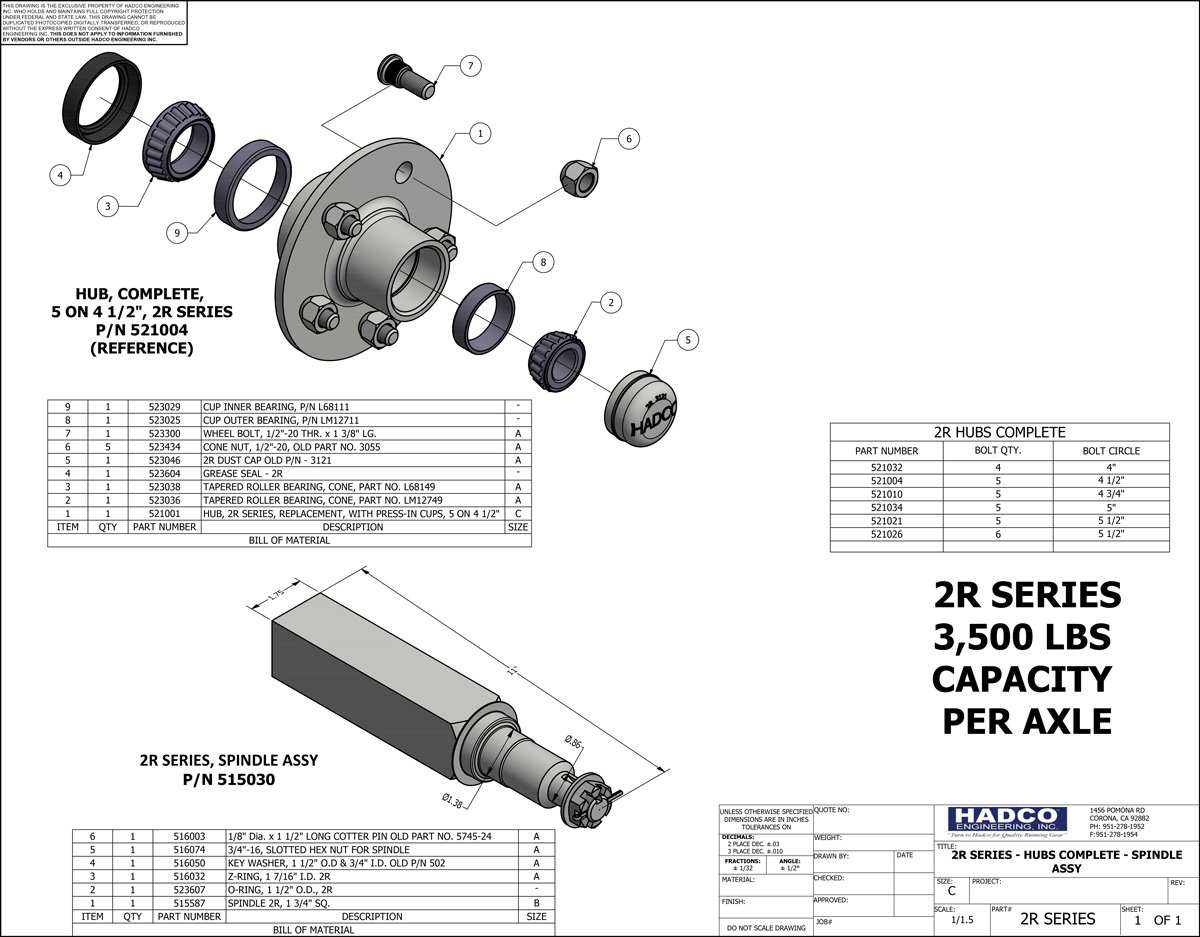

5 CONE BOLTS ON 4-1/2" BOLT CIRCLE
• CAPACITY PER AXLE: 3,500 LBS HIGHWAY SERVICE
• REFER TO TECHNICAL INFORMATION FOR LOW SPEED SERVICE.
• BRAKES AVAILABLE: 7 x 1-3/4 PARKING OR 12 x 2 PARKING 12 x 2 HYDRAULIC OR ELECTRIC SERVICE
• WEIGHT PER HUB: 6 LBS.
HUB AND WHEEL COMBINATIONS
|
Bolt Circle |
Wheel |
Wheel Size |
Wheel Type |
Hub Replacement |
Hub Complete |
|
5on 4-1/2
|
540402 |
8x4-1/4 |
F.B. |
525554 |
525555 |
|
540000 |
9x4 |
F.B. |
|||
|
540015 |
13x4-1/2 |
D.C. |
|||
|
540027 |
14x5 |
D.C. |
21003 |
521004 |
|
|
540048 |
15x5 |
D.C. |
|||
|
540089 |
15x6 |
D.C. |
HUB, DRUM, BRAKE AND WHEEL COMBINATIONS
|
Bolt Circle |
Brake Used |
Wheel |
Wheel Size |
Wheel Type |
Brake Drum |
Hub & Drum Replacement |
Hub & Drum Complete |
|
5on4.5
|
7x1.75 |
540402 |
8x4.5 |
F.B. |
24899 |
525432 |
525433 |
|
parking |
|||||||
|
540000 |
9x4 |
F.B. |
|||||
|
540015 |
13x4.5 |
D.C. |
24899 |
525434 |
525435 |
||
|
540027 |
14x5 |
D.C. |
|||||
|
12x2 hyd |
540028 |
15x5 |
D.C. |
||||
|
w/parking |
540089 |
15x6 |
D.C. |
24054 |
525436 |
525437 |
|
|
12x2 elect |
